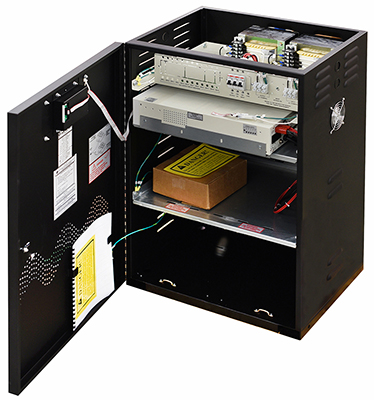

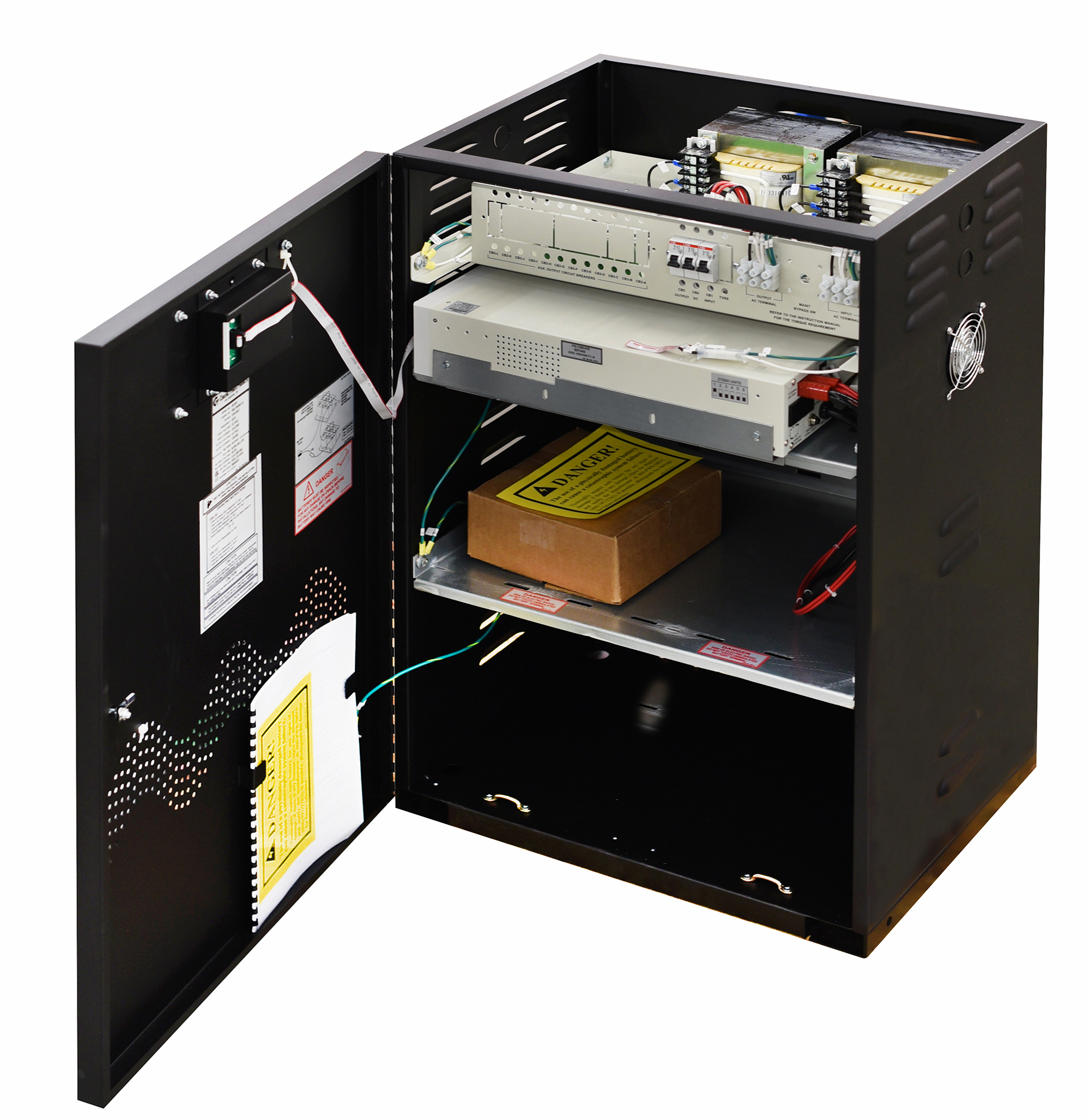

Compact Central Lighting Inverter

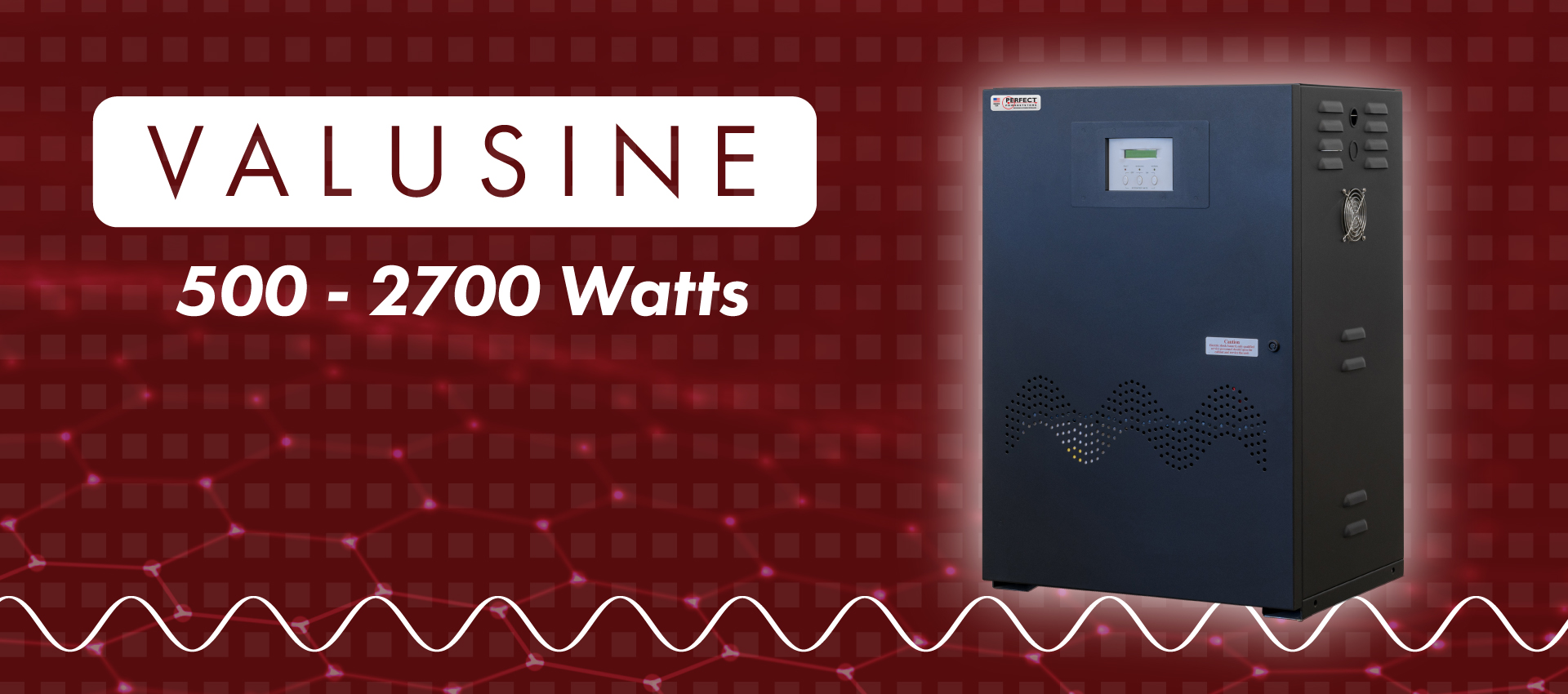

500 to 2700 Watts

Listed to UL1778 & UL924 by ETL
Single Phase, Full Range Voltage Regulation
Small Footprint and Light Weight
Sinewave Output
Double Conversion, "no-break" online system for all applications and lamp types
Front Access and Easy Installation
Monitoring panel displays unit's status
Full Range Voltage RegulationAC Power ON Indicator
Battery ON Indicator
Charger ON Indicator
DC Battery Switch
AC Line Switch


Power Rating 500 Watts to 2700 Watts
Input Voltage 120 or 277 Volt ±10% On-Line zero transfer time
Output Voltage 120 or 277 Volt
Output Frequency 50 Hz or 60 Hz ±5% (battery mode)
Output Voltage Reg. ±4% for all loads and for Battery Discharge mode
Output Waveform Sinewave during emergency @ 10% max. THD with linear load
Output Protection Current limiting and short circuit protection
Battery Maintenance free sealed lead calciumC
Recharge Time Recharge Time per UL924
Safety Agencies Listed to UL1778 and UL924 by ETL
Indicator LED Green, UPS ON, Output available
Orange: Battery mode, Bypass mode,
Red: Fault
Environmental Operating Temp. (Conditioned Space): 68° to 86°F (20° to 30°C) Per UL924
Battery: 20° to 25°C. (68°-77°F)
Storage Temp: -20° to 50°C. (-4°-122°F)
Humidity: 0% - 95% (non-condensation)
Altitude: Up to 10,000ft
Dimension 23.5”(W) x 34.25”(H) x 18.25”(D)
