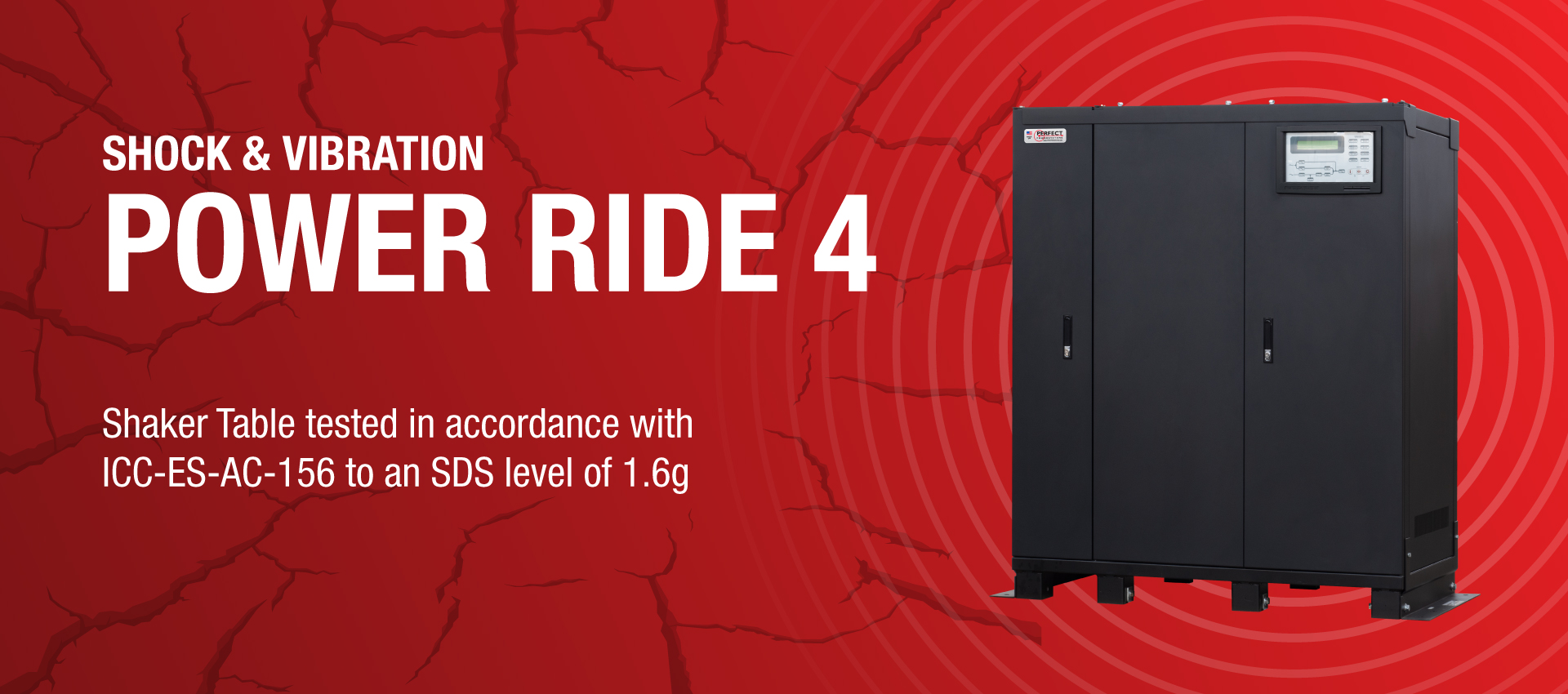

Seismic Certified POWER RIDE 4
Seismic Certified to SDS Level 1.6G, Listed to CBC2016, IBC2015, AC136
8 to 400 kW
CSA Certified to UL1778 and UL924
Incandescent, Fluorescent, HID, HPS, LED
Power Factor & Energy Efficient Ballast
Hybrid Fast Transfer Green Mode - 98% Efficiency
Online Continuous Mode - 94% Efficiency
Modular Design, Front Access
Multiple Design Configurations
True Galvanic isolation design
Designed to protect against a floating neutral
Advanced digital signal processing
Modular Assembly for Ease of Troubleshooting and Maintenance
Redundant Multi-CPU design allows the software and hardware to work together as a team
The most intelligent and safe battery test circuitry available today
Individualized inverter support on each phase
Hi-Tech fan speed control
Optimum design for heat dissipation
Battery Power start feature
1 Year Factory Warranty
SPECIFICATIONS
| SPECIFICATIONS | |
| Power Rating | 8, 16, 24, 32, 40, 48, 64, 80, 96, 128, 160, 192, 240, 320, and 400 kW |
| Input Voltage | 208Y/120 V or 480Y/277 VAC (-15% to +15%) |
| Output Voltage | 208Y/120 V or 480Y/277 VAC |
| Output Frequency | 60 Hz ±1 Hz (Inverter Operation) |
| Output Voltage Reg. | ±1% at 100% unbalanced load |
| Output Waveform | Sine-Wave < 2% THD. |
| Crest Factor | 3.1 Typical |
| Surge Protection | The UPS will protect itself and the load against surges as defined in ANSI/IEEE C62.41 Categories A and B. |
| Isolation | True galvanic isolated |
| Battery | Sealed maintenance-free VRLA or Long Life Battery (available upon request) |
| Recharge Time | Varies per KVA and conforms to UL924 |
| Environmental |
Humidity: 0–95% RH w/no condensation Operating Temperature: UPS: 0°C to 40°C (32°F to 104°F) Battery: 20°C to 30°C (68°F to 86°F) Storage temperature: -20°C to 60°C (-40°F to 140°F) |
| Safety Agencies | CSA Certified to UL1778 and UL924 |
| Cabinet Sizes Inverter only |
8-48kW: 40.75”W x 63”H x 31.5”D 64-200kW: 62.5”W x 63”H x 31.5”D Consult factory for higher capacity models. |
| *Battery Cabinet Sizes | 58.75”W x 70”H x 30.5”D |
| Standard Battery Back-up time is 90 minutes @ full load | |
|
Download |
PDF format |
Word Format |
Inverter Cabinet STP Files
| Cabinet Type | Power Rating | Mounting | File Type |
| Inverter Cabinet 63"H | 8 - 48 KW | Standard | STP |
| With Seismic | STP | ||
| OSHPD (HCAI) | STP | ||
| 64 - 200 KW | Standard | STP | |
| With Seismic | STP | ||
| OSHPD (HCAI) | STP |
Battery Cabinet STP Files
| Cabinet Type | Mounting | File Type |
| Battery Cabinet - D Size | Standard | STP |
| With Seismic | STP | |
| OSHPD (HCAI) | STP |
