Seismic Certified POWER RIDE 1

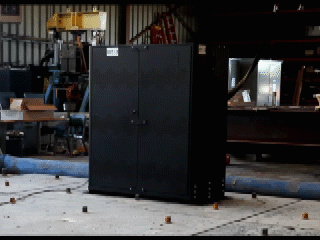

SHAKER TABLE TESTED Emergency Lighting Inverter
3 to 17 kW
Seismic Certified to SDS Level 3.0G, Listed to CBC2016, IBC2015, AC136
CSA Listed to UL924, UL924A, & UL1778
Incandescent, Fluorescent, HID, HPS, LED
Power Factor and Energy Efficient Ballast
Efficiency: 94% online . 98% standby
Sinusoidal Waveform
Pulse Width Modulated (PWM)
Generator Compatible
Multiple Output Voltages
LCD Panel for Monitoring
Modular Assy for Ease of Installation
Transformerless Technology
Battery exerciser
Continuous Self-Diagnostics
Double Conversion Technology
Input Power Correction Built-In
Remote Monitoring
RS-232 and 485
1 Year Factory Warranty
SPECIFICATIONS
| Power Rating | 3.0, 5.0, 6.0, 8.0, 10.0, 12.5, 15.0, & 17 KW |
| Input Voltage |
3, 5, 6, and 8 KW; 120, 208, 240, 277, or 480 VAC (-20% to +15%) 10, 12.5, 15, and 17 KW; 208, 240, 277, or 480 VAC (-15% to +15%) |
| Output Voltage | 120, 208, 240, 277, or 480 VAC. 120/240: 120/208; 120/277; 480 & 277 |
| Output Frequency (Inverter Operation) | 60 Hz ±0.5 Hz |
| Voltage Regulation | ±3% Typical |
| Output Protection | Internal Electronic overload protection. Circuit breaker provides inherent over-load protection. Factory selectable voltage 120, 208, 240, 277, or 480 for input or output voltages. If input is different from output or output different from input, an internally mounted transformer is required. |
| Surge Protection | The inverter will protect itself and the load against surge as defined in ANSI/IEEE C62.45 category A and B. |
| Noise Isolation | -120 dB Common-Mode; -60 dB Transverse-Mode |
| Isolation | Output is completely isolated from input and with multi voltages./td> |
| Efficiency | 98% standby - fast transfer / 94% online |
| Power Factor | Unity |
| Crest Factor | 3:1 Typical |
| Battery | Sealed, Maintenance-free, Lead-Acid, VRLA (Standard) 10 years. |
| Battery Management (Option) | Utilizes a microprocessor technology to monitor the batteries critical levels and apply charging cycles in a method to substantially increase battery life. |
| Battery Housing | Free-standing NEMA 1 enclosure with powder-coated finish; front access only; multiple conduit entry points; see dimension chart. |
| Recharge Current | Conforms to UL Standards |
| Environmental |
Humidity: 0-95% RH w/no condensation Operating Temperature: UPS: 0°C to 40°C. (32°F to 104°F); Battery: 20°C to 30°C. (68°F to 86°F) Storage Temp: -20 to 60°C. (-4 - 140°F) Altitude: Up to 10,000 ft |
| Safety Agencies | CSA Listed UL1778, UL924, UL924A |
|
Cabinet Dimension w/ Seismic Bracket on both sides |
3 -, 8 kW: 46"(W) x 68"(H) x 18"(D) 10 - 17 kW: 58.75"(W) x 70"(H) x 30.5"(D) |
|
Download |
PDF format |
Word Format |
STP files for this product are available on our Downloads page.
