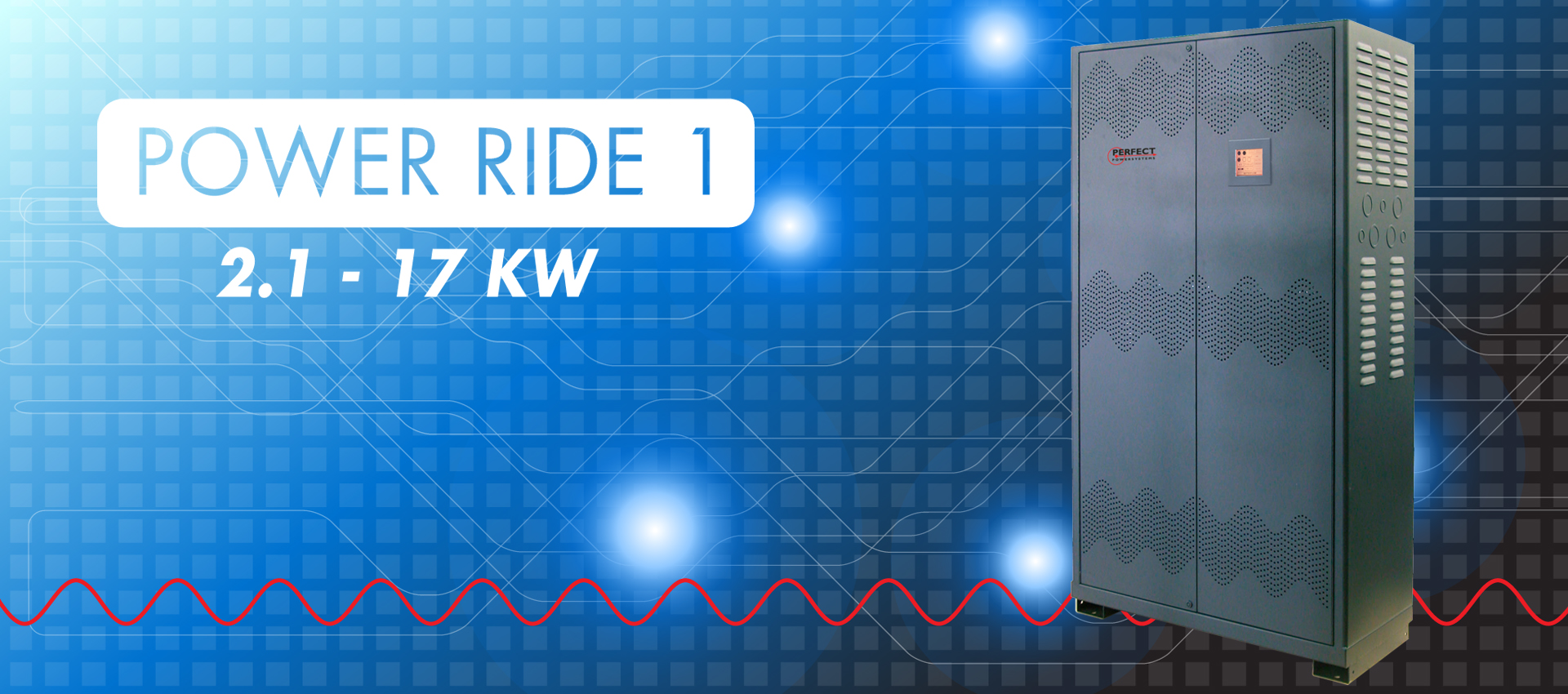

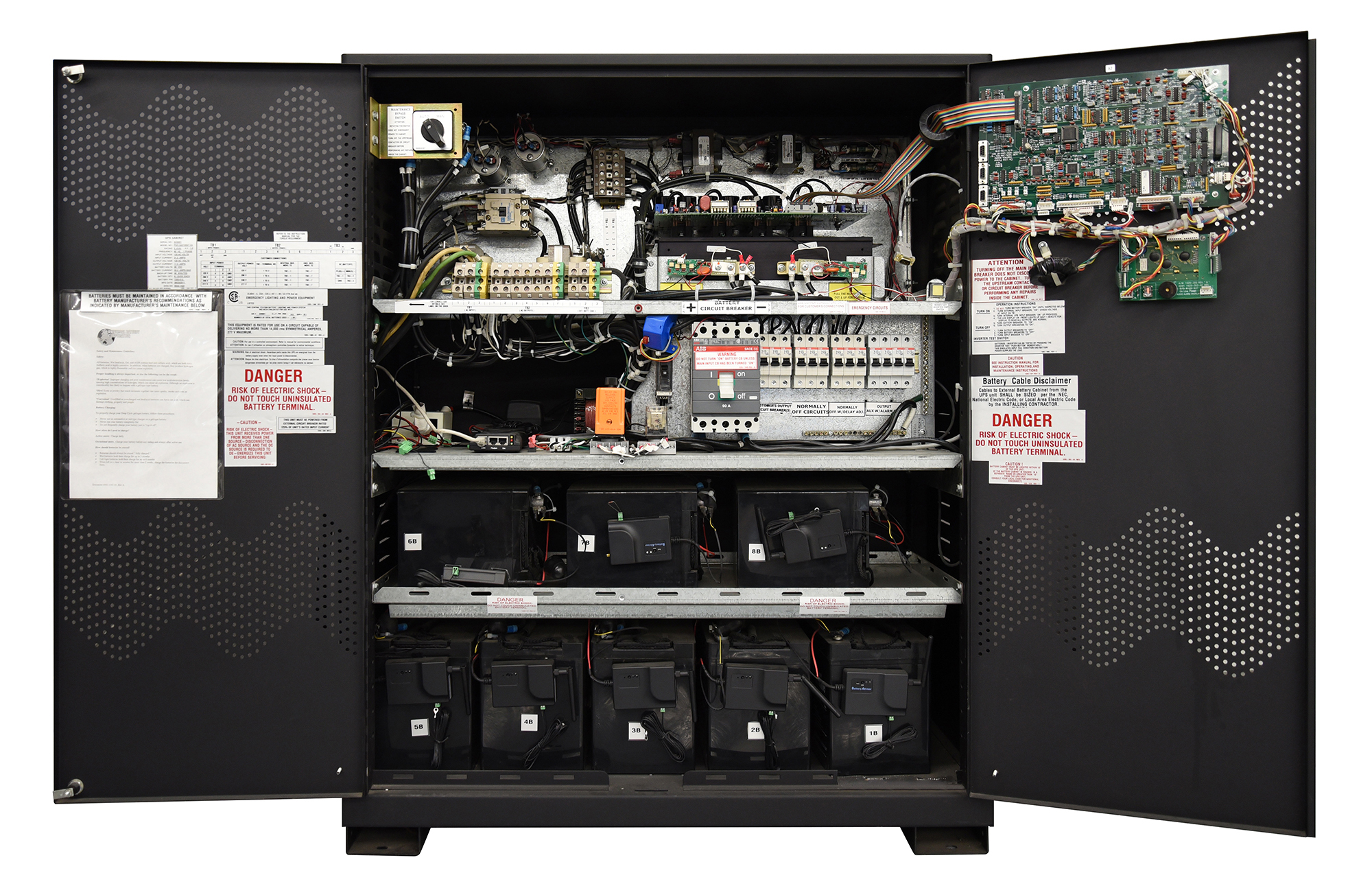

PowerRide 1  Single Phase, 2.1 to 17 kW
Central Lighting Inverter


Perfect Power Systems Perfect Power Systems Perfect Power Systems
Perfect Power Systems Features
PowerRide 1Perfect Power SystemsCSA Listed to UL924, UL924A, & UL1778
Perfect Power SystemsIncandescent, Fluorescent, HID, HPS
Perfect Power SystemsPower Factor & Energy Efficient Ballast
Perfect Power Systems90% Efficiency
Perfect Power SystemsSinusoidal Waveform
Perfect Power SystemsPulse Width Modulated (PWM)
Perfect Power SystemsGenerator Compatible
Perfect Power SystemsMultiple Otuput Voltages
Perfect Power SystemsLCD Panel for Monitoring
Perfect Power SystemsModular Assy for Ease of Installation
Perfect Power SystemsTransformerless Technology
Perfect Power SystemsBattery exerciser
Perfect Power SystemsContinuous Self-Diagnostics
Perfect Power SystemsDouble Conversion Technology
Perfect Power SystemsInput Power Correction Built-In
Perfect Power SystemsStackable Cabinets
Perfect Power SystemsSeismic Rated with Bracket Kit
Perfect Power SystemsRemote Monitoring
Perfect Power SystemsRS-232 & 485
Perfect Power Systems1 Year Factory Warranty		 Perfect Power Systems
Perfect Power Systems Perfect Power Systems Perfect Power Systems
Specifications:
Power Rating 2.1 to 17 KW
Input Voltage 3 & 5 KW;120, 208, 240, or 277 VAC (-20% to +15%)
7.5 - 17 KW; 208, 240, or 277 VAC (-15% to +15%)
Output Voltages 120, 208, 240, or 277VAC
Output Frequency
(Inverter Operation)		 60 Hz ±0.5 Hz
Voltage Regulation ±3%, Regulated within CBEMA curve
Output Wave Form Sine-Wave < 5% THD.
Efficiency Minimum 90%
Crest Factor 3:1 Typical
Surge Protection The UPS will protect itself and the load against surges as defined in ANSI/IEEE C62.41 Categories A and B.
Isolation Complete from line. Output neutralbonded to ground
Noise Isolation -120 dB Common-Mode; -60 dB Transverse-Mode
Battery Sealed maintenance-free (AGM) battery
Battery Volt KW dependent
Recharge Current Conforms to UL Standards
External Battery Provisions for hardwire connection of optional external battery cabinets or DC source.
Environmental
Humidity 0 - 95% RH w/ no condensation
Operating Temperature UPS: 0° to 40°C. (32° - 104°F)
Battery: 20° to 30°C. (68° - 86°F)
Storage Temperature -20 to 60°C. (-4° - 140°F)
Altitude Up to 10,000 ft
Safety Agencies CUL, CSA Listed UL1778, UL924, UL924A,, MEA Approved; State Fire Marshal Approved (CA, NY, IL)
*Inverter Cabinet Sizes (with Standard Battery Run Times) All model

W"
H"
D"
2.1 to 3 kW
39
x
48
x
18
3.5 to 17 kW
39
68
18



kW Input/Output Voltage Model Number DC Volts BTU/
Hr		 Cab. Size
UPS (Battery)		 UPS
Weight		 Battery
Weight
2.1

120/120
208/208
240/240
277/277
120, 208, 240, or 277

 PD3.0A0100NI-VA
PD3.0B1300NI-VA
PD3.0D0400NI-VA
PD3.0R2500NI-VA
*PD3.0X5800TI-VA		 96 859
859
859
859
1166		 39" X 48" X 18" 826
826
826
826
896		 N/A
3.0

120/120
208/208
240/240
277/277
120, 208, 240, or 277

 PD3.0A0100NI
PD3.0B1300NI
PD3.0D0400NI
PD3.0R2500NI
*PD3.0X5800TI		 96 1227
1227
1227
1227
1433		 39" X 48" X 18" 996
996
996
996
1066		 N/A
3.5

120/120
208/208
240/240
277/277
120, 208, 240, or 277

 PD5.0A0100NI-VA
PD5.0B1300NI-VA
PD5.0D0400NI-VA
PD5.0R2500NI-VA
*PD5.0X5800TI-VA		 120

1314
1314
1314
1314
1433

 39" X 68" X 18" 1101
1101
1101
1101
1171		 N/A
5.0

120/120
208/208
240/240
277/277
120, 208, 240, or 277

 PD5.0A0100NI
PD5.0B1300NI
PD5.0D0400NI
PD5.0R2500NI
*PD5.0X5800TI		 120

1875
1875
1875
1875
2047

 39" X 68" X 18" 1214
1214
1214
1214
1284		 N/A
5.2

208/208
240/240
277/277
208, 240, or 277

 PD7.5B1300NI-VA
PD7.5D0400NI-VA
PD7.5R2500NI-VA
*PD7.5X5800TI-VA		 120

1973
1973
1973
2159

 39" X 68" X 18" 1506
1506
1506
1666		 N/A
7

208/208
240/240
277/277
208, 240, or 277

 PD010B1300NI-VA
PD010D0400NI-VA
PD010R2500NI-VA
*PD010X5800TI-VA		 192

2629
2629
2629
2866

 39" X 68" X 18"
(39" X 48" X 18")		 1080
1080
1080
1255		 787
7.5

208/208
240/240
277/277
208, 240, or 277

 PD7.5B1300NI
PD7.5D0400NI
PD7.5R2500NI
*PD7.5X5800TI		 120

2819
2819
2819
3070

 39" X 68" X 18"
(39" X 48" X 18")		 1224
1224
1224
1384		 966
8.8

208/208
240/240
277/277
208, 240, or 277

 PD012B1300NI-VA
PD012D0400NI-VA
PD012R2500NI-VA
*PD012X5800TI-VA		 192

3287
3287
3287
3583

 39" X 68" X 18"
(39" X 68" X 18")		 1305
1305
1305
1525		 1047
10

208/208
240/240
277/277
208, 240, or 277

 PD010B1300NI
PD010D0400NI
PD010R2500NI
*PD010X5800TI		 192

3755
3755
3755
4094

 39" X 68" X 18"
(39" X 68" X 18")		 1289
1289
1289
1464		 1406
10.5

208/208
240/240
277/277
208, 240, or 277

 PD015B1300NI-VA
PD015D0400NI-VA
PD015R2500NI-VA
*PD015X5800TI-VA		 240

3926
3926
3926
4299

 39" X 68" X 18"
(39" X 68" X 18")		 1545
1545
1545
1885		 1247
12.5

208/208
240/240
277/277
208, 240, or 277

 PD012B1300NI
PD012D0400NI
PD012R2500NI
*PD012X5800TI		 192

4696
4696
4696
5118

 39" X 68" X 18"
(39" X 68" X 18")		 1959
1959
1959
2179		 1598
14

208/208
240/240
277/277
208, 240, or 277

 PD020B1300NI-VA
PD020D0400NI-VA
PD020R2500NI-VA
*PD020X5800TI-VA		 240

5257
5257
5257
5732

 39" X 68" X 18"
(39" X 68" X 18")		 1999
1999
1999
2559		 2173
15

208/208
240/240
277/277
208, 240, or 277

 PD015B1300NI
PD015D0400NI
PD015R2500NI
*PD015X5800TI		 240

5608
5608
5608
6141

 39" X 68" X 18"
(39" X 68" X 18")		 1999
1999
1999
2339		 2173
17 208/208
240/240
277/277
208, 240, or 277		 PD020B1300NI
PD020D0400NI
PD020R2500NI
*PD020X5800TI		 240 5608
5608
5608
6141		 39" X 68" X 18"
(39" X 68" X 18")		 1999
1999
1999
2339		 2173

* INPUT VOLTAGE X: A=120 (2.1 & 3.5 kVA only), B=208, D=240, R=277 VAC
