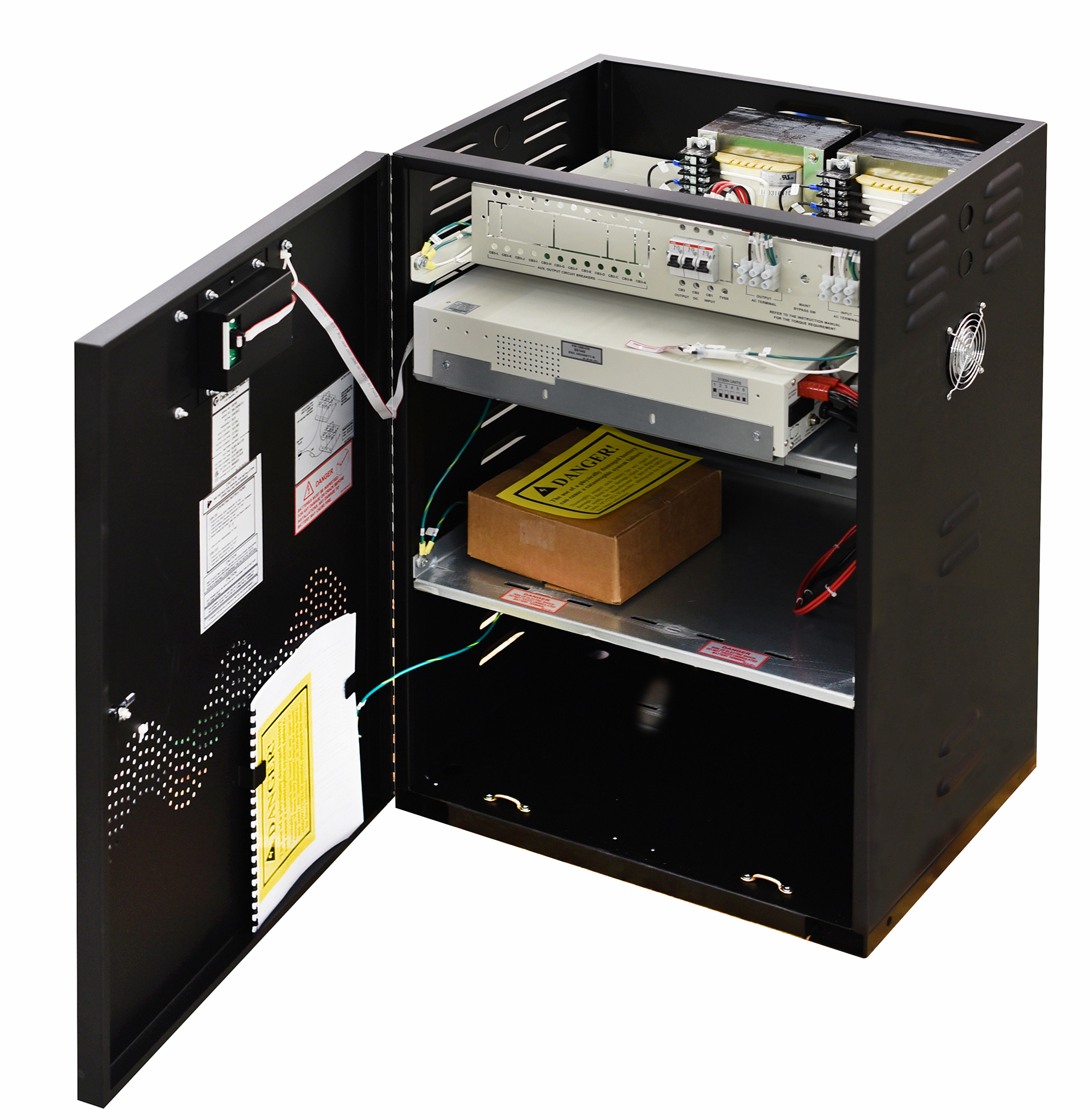

POWER GUARD

Compact Central Lighting Inverter

500 to 2100 Watts

Single Phase, Full Range Voltage Regulation
Small Footprint and Light Weight
Sinewave Output
Double Conversion, "no-break" online system for all applications and lamp types
Front Access and Easy Installation
Monitoring panel displays unit's status
Full Range Voltage RegulationAC Power ON Indicator
Battery ON Indicator
Charger ON Indicator
DC Battery Switch
AC Line Switch

SPECIFICATIONS

Power Rating 500 Watts to 2100 Watts
Input Voltage 120 or 277 Volt ±10% On-Line zero Transfer time
Output Voltage 120 or 277 Volt
Output Frequency 50 Hz or 60 Hz +/- 5% (Battery Mode)
Output Voltage Reg. ±4% for all loads and for Battery Discharge mode
Output Wave Form Sinewave during emergency a 10% max. THD with linear load
Output Protection Current limiting and short circuit protection
Battery Maintenance free sealed lead calcium 72 VDC and 96 VDC
Battery Time Recharge Time per U.L. 924
Indicator LCD UPS Status
Indicator LED Green, UPS ON, Output available
Orange: Battery mode, Bypass mode,
Red: Fault
Environmental Humidity: 0-95% RH w/no condensation
Operating Temperature:
UPS: 0°C to 40°C. (32°F to 104°F)
Battery: 20°C to 30°C. (68°F to 86°F)
Dimension 23.5”(W) x 34.5”(H) x 18.5”(D)
